Sustain Mass Production with Ultraspeed machines
ULTRASPEED machines are the innovative solution for PCB drilling and routing. Accurate, productive and reliable custom solutions.
Characteristics
- Designed for sheet and plate products
- Hole diameter down to 75 microns
- High productivity : up to 20 hits/sec/spindle
- Process stability : temperature management and axis positioning optimization
- Accuracy improved by alternating drilling and routing on the same machine
- X, Y and Z axes with linear motor drives
- Controlled depth drilling and routing processes (blind holes, floating, mapping, polishing, etc.)
- Accuracy ±15 microns
- Axes acceleration up to 4g
- Diameter/depth ratio 1/10
- Up to 12 spindles per machine
- Up to 12’000 tools embedded
- Software with Posalux intuitive MMI

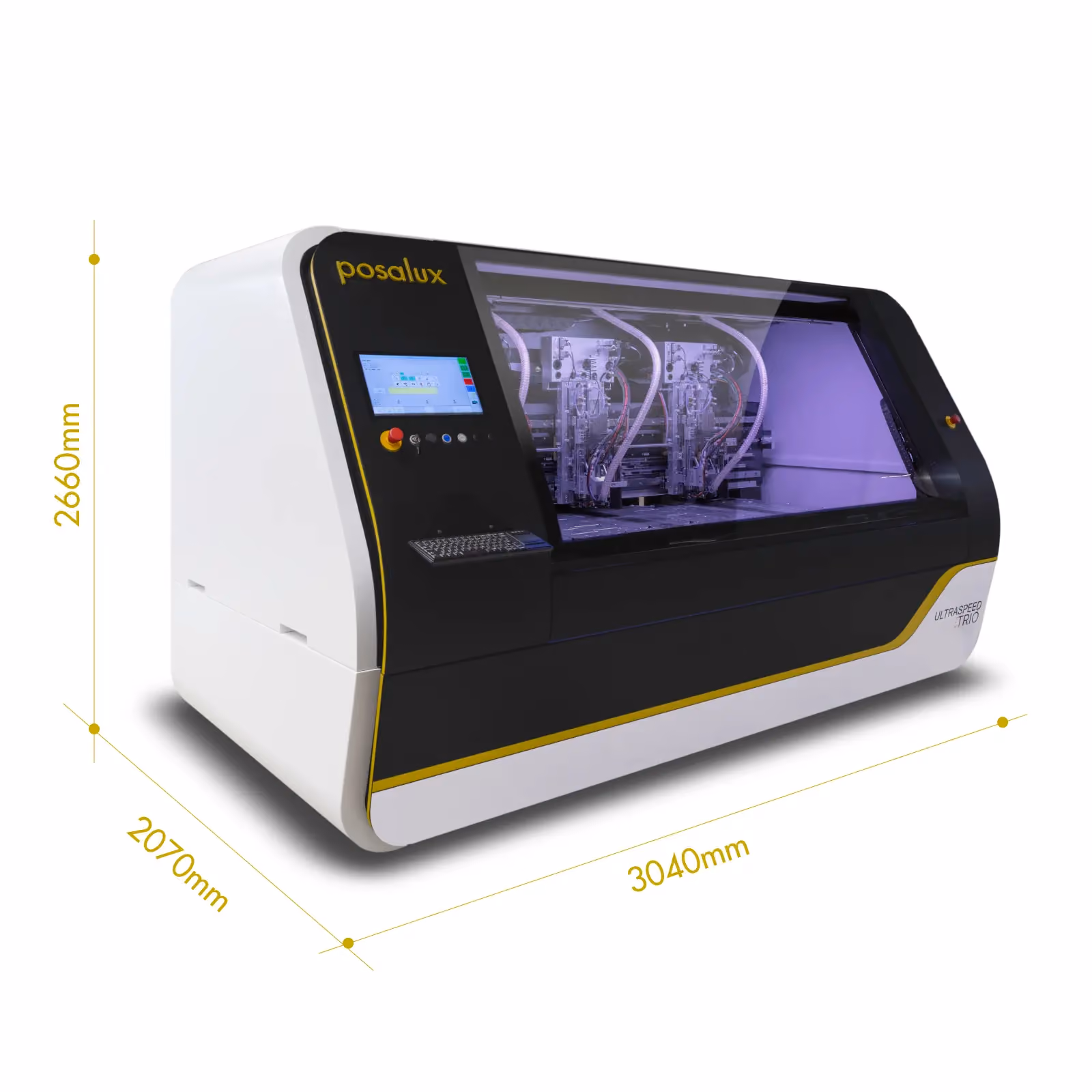

- Dual versions with two identical machining units are available
Mechanical micromachining, commonly known as micromachining, is a specialized manufacturing technology that involves the use of micro tools, such as micro-endmills or micro-drills, with geometrically defined cutting edges. This subtractive fabrication process crafts devices or features with dimensions in the micrometer range. It mirrors traditional machining in approach but operates on a distinctly smaller scale, necessitating specialized equipment and techniques to define microscale structures or components. Mechanical micromachining provides:
- Flexibility
- Cost-effective solution for small-batches
- Complex geometry
- Reduced waste
- Integration
- Scalability
- Direct production

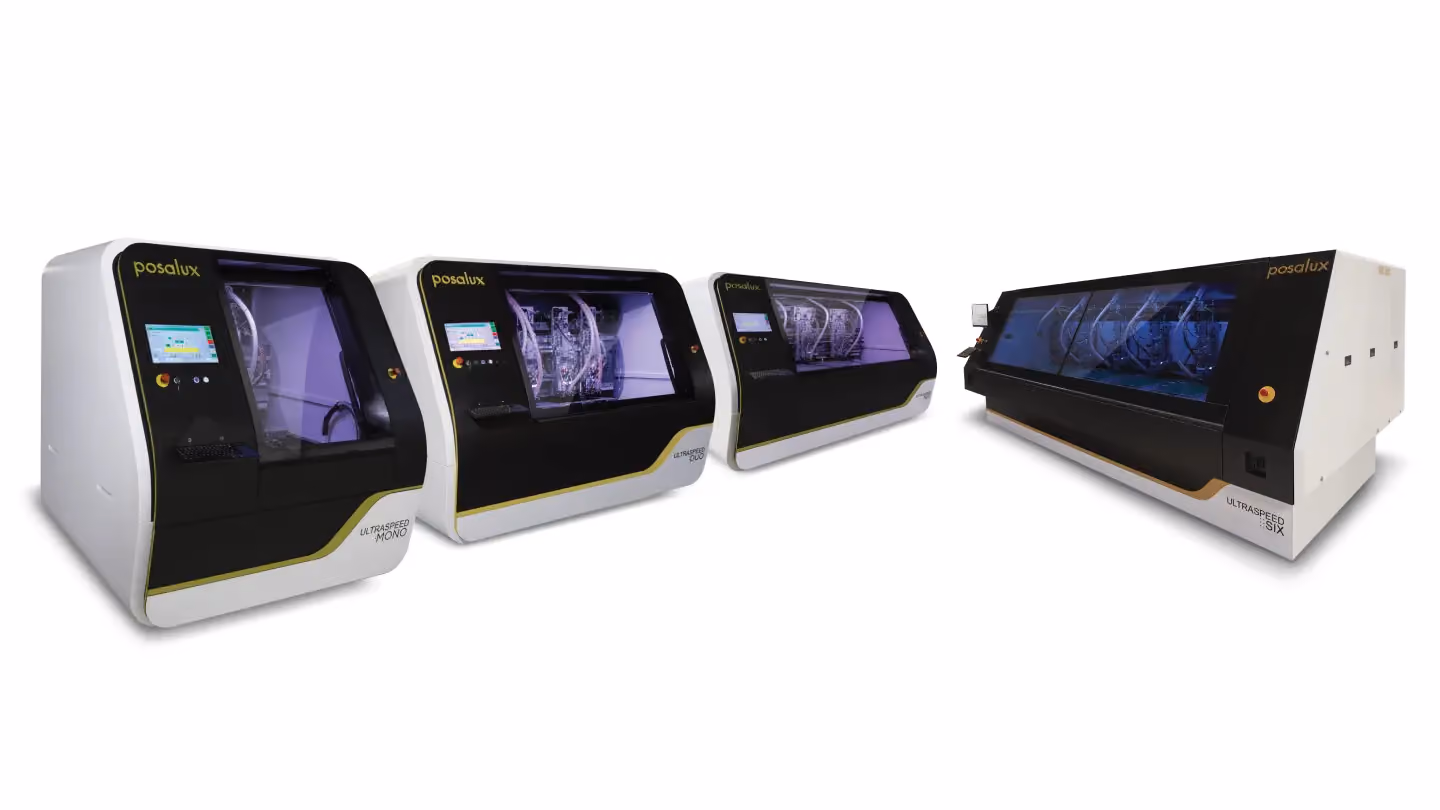

Modularity
Be inspired by the applications that can be performed with this series of micro-machining machines.
Drilling and routing of composites and non-ferrous materials for printed circuit boards (PCB) industry
